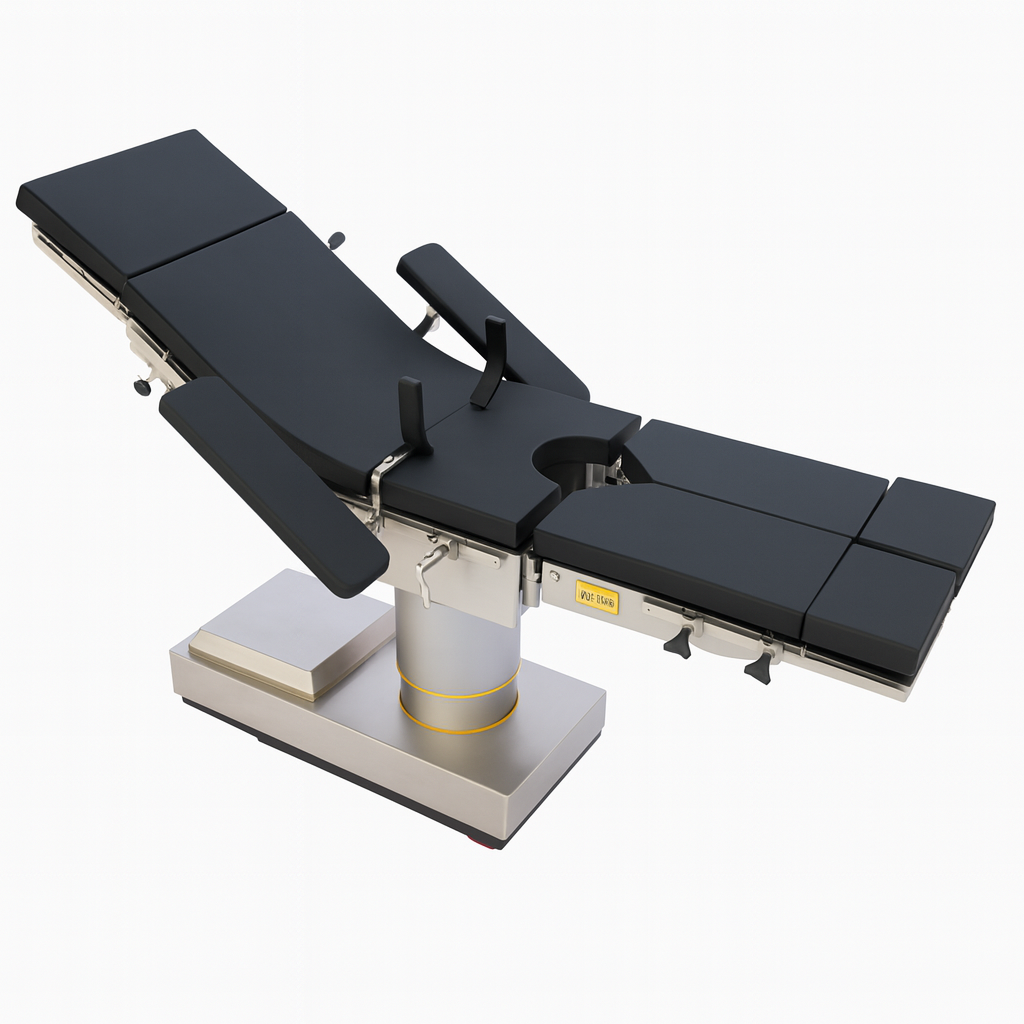

HP-U09 Electro-hydraulic operating table Standard Type

Main functions: table lifting, back plate folding up and down, front and backward, left and right tilt for electro-hydraulic actuator, forward and backward translation and brake for electric actuator, with battery.
Technical parameters:
1. The width of the countertop bed is 2040 (±20)× 550 (±20) mm
2. Height adjustment 700(±20)-1000(±20)mm
3. The front tilt of the table is ≥35°, and the backward tilt is ≥ 25°
4. Roll ≥ 25°
5. The top and bottom of the headboard are folded ≥ 90°
6. The back plate is folded ≥85°, and the back plate is folded down ≥55°
7. The leg plate is folded down and abducted ≥ 90°
8. The waist plate is raised ≥ 120mm
9. Translation ≥ 340 mm
