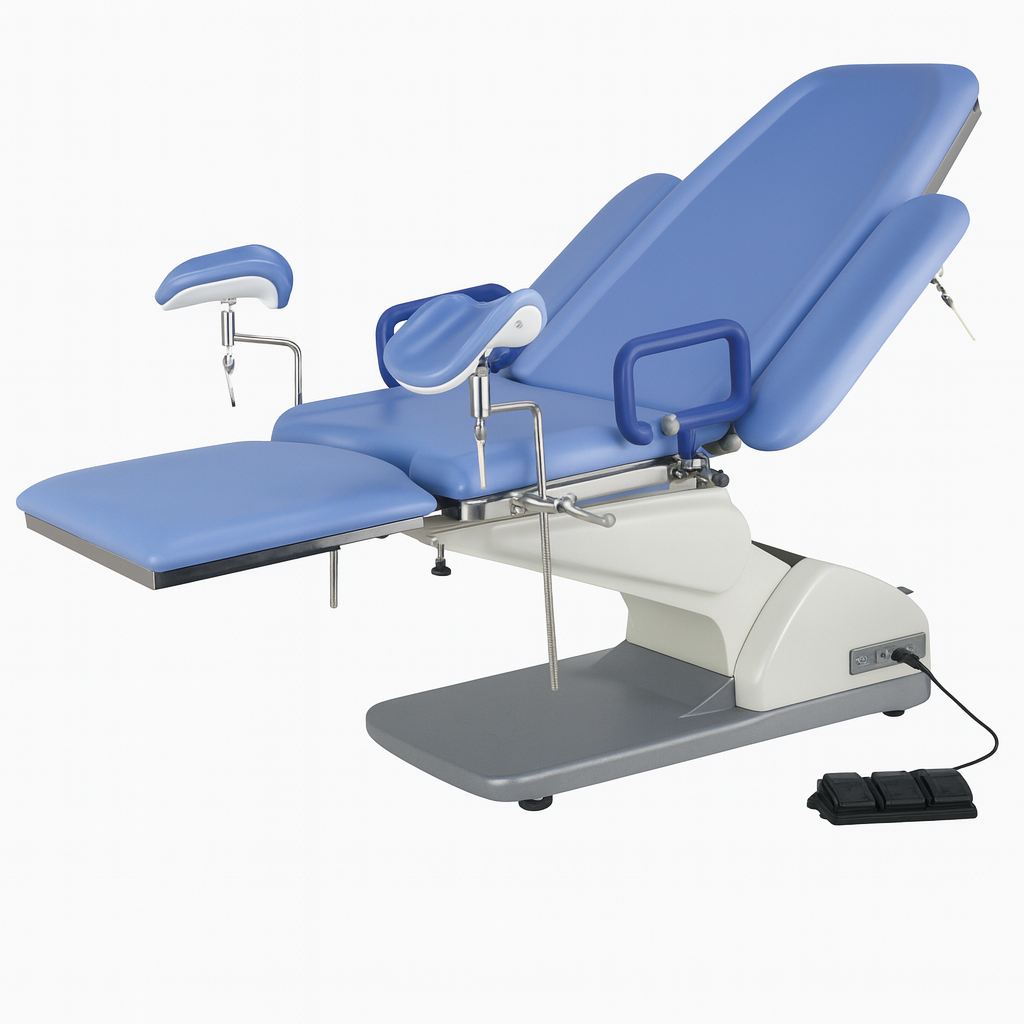

HP-T08 Electric examination bed Luxury type

Main functions: The lifting of the countertop, the upturn of the seat and the folding of the back plate are all operated by electric actuators.
Technical parameters:
1. The width of the countertop bed is 1800 (±20) × 550 (±20) mm
2. Table height 550-900 (±20)mm
3. The seat plate is upturned 30 °
4. Back plate folding angle: -7°-85°
5. Folding angle of the seat board: -15°
6. Maximum load of motor: 8000N;
7. Motor input voltage: 24V;
8. Motor lifting speed: 0.8/min
9. Gynecological examination lighting adjustment angle: 360°;
10. Power supply: AC 220V, 50HZ;
11. Maximum load capacity: ≥200kg
