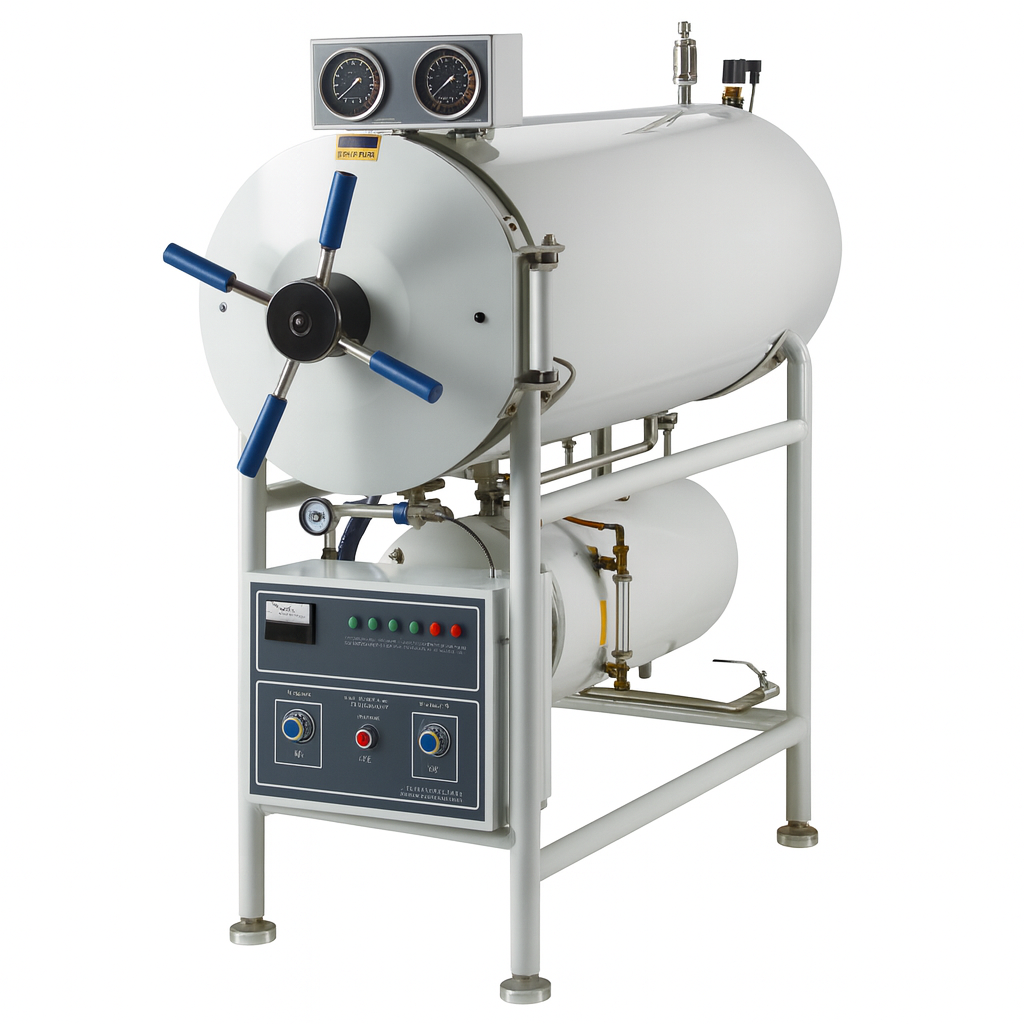

HP-N40 Horizontal Pressure Steam Sterilizer

Chamber volume500L
Φ700x1300mm
Design pressure 0.3MPa
Design temperature 150℃
Max. working pressure 0.25MPa
Max, working temperature 138℃
Heat average ≤±2℃
Power 15kw/380V.50Hz
Timer range 0~60min
Overall dimension(mm) 1800x900x1820
Transport dimension(mm) 1850x1050x2050
G.W/N.W 627kg/540kg
