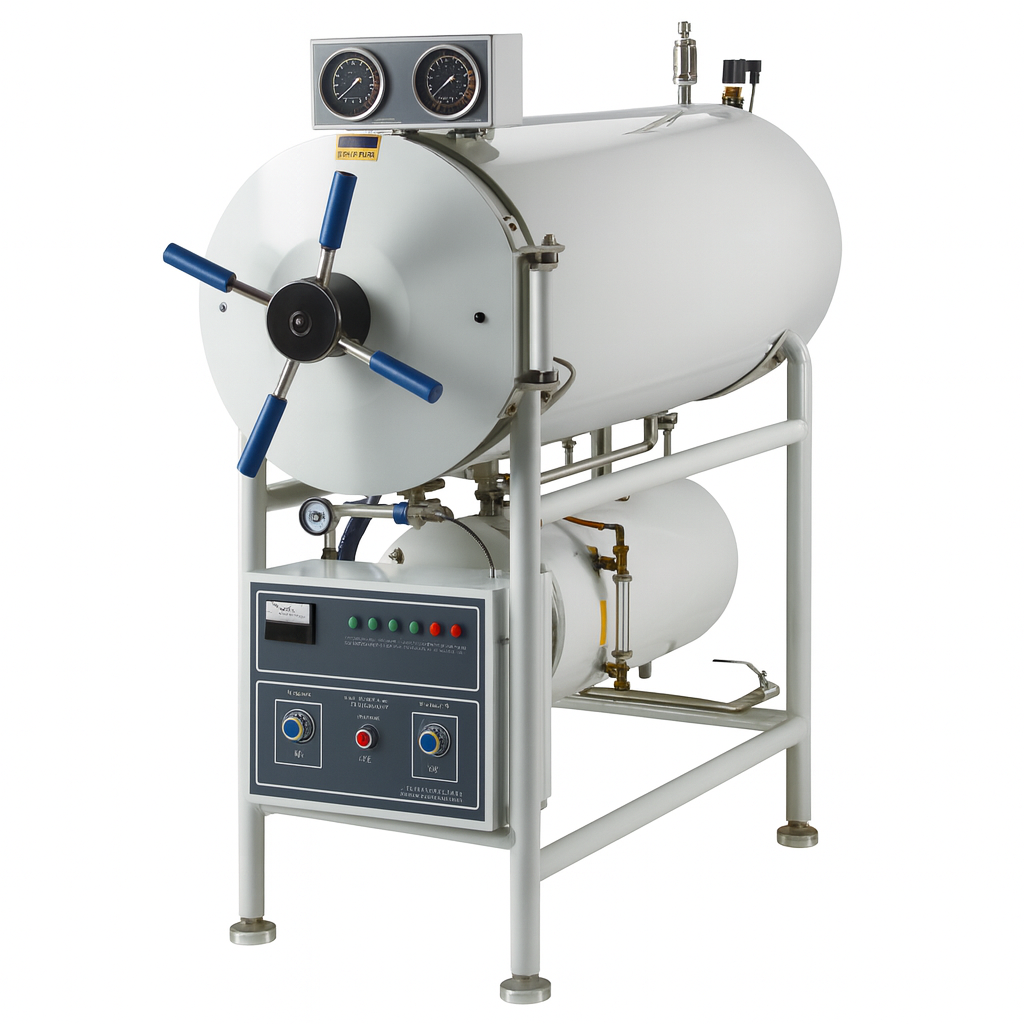

HP-N37 Horizontal Pressure Steam Sterilizer

Chamber volume200L
Φ515x1000mm
Design pressure 0.3MPa
Design temperature 150℃
Max. working pressure 0.25MPa
Max, working temperature 138℃
Heat average ≤±2℃
Power 9kw/380V.50Hz
Timer range 0~60min
Overall dimension(mm) 1400x670x1650
Transport dimension(mm) 1560x820x1930
G.W/N.W 378kg/318kg
